POST/api/v1/create/checkout

Create Checkout

Endpoints for creating hosted checkout pages for customer payments. Merchants use these APIs to initiate payment requests and generate secure Beqelal-hosted checkout URLs. Customers are redirected to these pages to complete payments via their financial institution.

Authentication

Requires the following headers:

app-id: Your application identifier (from Account Management → Generate API Key → APP id)

api-key: Your secret API key (from Account Management → Generate API Key → API Keys)

Request Processing

1. Validation:

Verifies required fields (phone, amount, return_url)
Validates Credentials
Validates account status and balances

2. Payment Session Creation:

Generates a unique payment reference
Creates secure checkout URL
Records transaction metadata

Parameters

Mandatory Fields

phonestringRequired

Customer's phone number in international format (e.g., 251912345678)

amountnumberRequired

Transaction amount in ETB (Ethiopian Birr). Must be greater than 0.

trace_numberstringRequired

Unique merchant reference for tracking. Must be globally unique.

return_urlstring (url)Required

URL where the customer will be redirected after completing the payment

Optional Fields

callback_urlstring (url)Optional

Override the portal-configured webhook URL for this specific transaction

Response

Returns JSON containing:

Payment reference ID
Checkout URL for customer redirection
Initial transaction status

Payment Flow

Customer completes payment via the provided checkout_url
System redirects to return_url after completion
Payment result is sent to callback_url via Webhook (see Webhook Callback Format below)

Important Notes

Trace Numbers: Must be globally unique
Expiration: Checkout links expire after 10 minutes
Currency: All amounts in ETB unless specified otherwise

Webhook Configuration

Mandatory:

Configure your webhook URL and secret in the Merchant Portal (Integration → Webhooks)

Override:

Optionally provide callback_url in the request to override the portal-configured webhook URL for this transaction

If callback_url is not provided, the portal-configured webhook URL will be used

Error Handling

Returns 400 status code for:

Missing required fields
Invalid account status
Insufficient balances

Duplicate Trace Number (439)

Error Response Example

{
  "error": {
    "status": "FAILED",
    "status_code": "439",
    "message": "TRACE_NUMBER",
    "detail": "trace_number must be unique"
  }
}

Code Examples

Request

curl -X POST "{base_url}/api/v1/create/checkout" \
  -H "Content-Type: application/json" \
  -H "app-id: YOUR_APP_ID" \
  -H "api-key: YOUR_API_KEY" \
  -d '{
  "phone": "251911000000",
  "amount": 100,
  "trace_number": "70RNVP0548",
  "return_url": "https://www.example.et/v1/",
  "callback_url": "https://www.example.et/v1/"
}'

Response Examples

Success (200)

200 - OK

Example Value

{
  "id": "4EA110DX7X",
  "phone": "251911000000",
  "amount": 100,
  "trace_number": "QREPDKFHDF4EA110DX7X",
  "status": "PROCESSED",
  "status_code": 200,
  "checkout": "https://checkout.beqelal.net/#/checkout/payment/425429a3-94ee-4554-98b3-bf663f6d99c2"
}

Bad Request (400)

400 - Bad Request

e.g., duplicate trace number, missing/invalid fields

Example Value

{
  "error": {
    "status": "FAILED",
    "status_code": "439",
    "message": "TRACE_NUMBER",
    "detail": "trace_number must be unique"
  }
}

Unauthorized IP Access (479)

479 - Unauthorized IP

Request from IP not whitelisted in Merchant Portal

Example Value

{
  "error": {
    "status": "FAILED",
    "status_code": "479",
    "message": "UNAUTHORIZED_IP_ACCESS",
    "detail": "Unauthorized IP address access."
  }
}

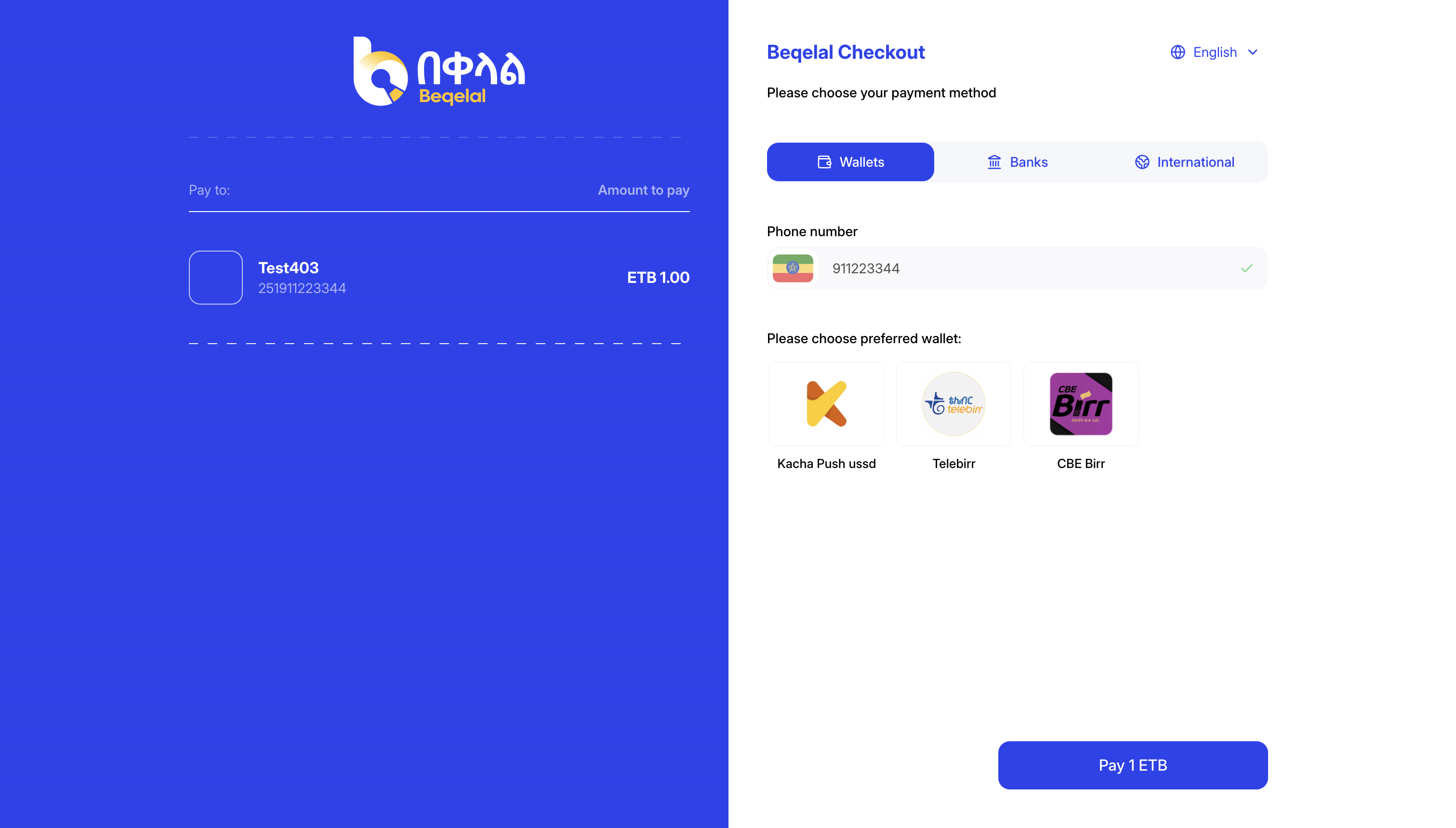

Redirect User to Checkout Link

After Payment

These things will happen when payment is done successful

We'll redirect to your set return_url
We'll send a POST request to your configured webhook URL.

Webhook Notification

After payment processing, Beqelal will send a POST request to your configured webhook URL (portal setting or callback_url override) with the following format:

HTTP Headers

Content-Type: application/json
User-Agent: Beqelal-Webhook/1.0
X-Webhook-Signature: <HMAC_SHA256_SIGNATURE> (if webhook secret configured)
X-Webhook-Timestamp: <UNIX_TIMESTAMP> (if webhook secret configured)

Request Body

Webhook Payload

{
  "reference": "BEQELAL_REF_123",
  "trace_number": "MERCHANT_REF_456",
  "status": "PROCESSED",
  "amount": 100.0,
  "timestamp": 1695123456
}

Fields:

reference: Beqelal's unique transaction ID

trace_number: Your original merchant reference

status: Either "PROCESSED" (success) or "FAILED" (failure)

amount: Transaction amount

timestamp: Unix timestamp when the webhook was sent

Signature Verification:

If you have configured a webhook secret, verify the X-Webhook-Signature header using HMAC SHA256. See the webhook test endpoint documentation for details.

Retry Logic:

Beqelal will automatically retry failed webhook deliveries up to 3 times with a 1-second delay between attempts.
